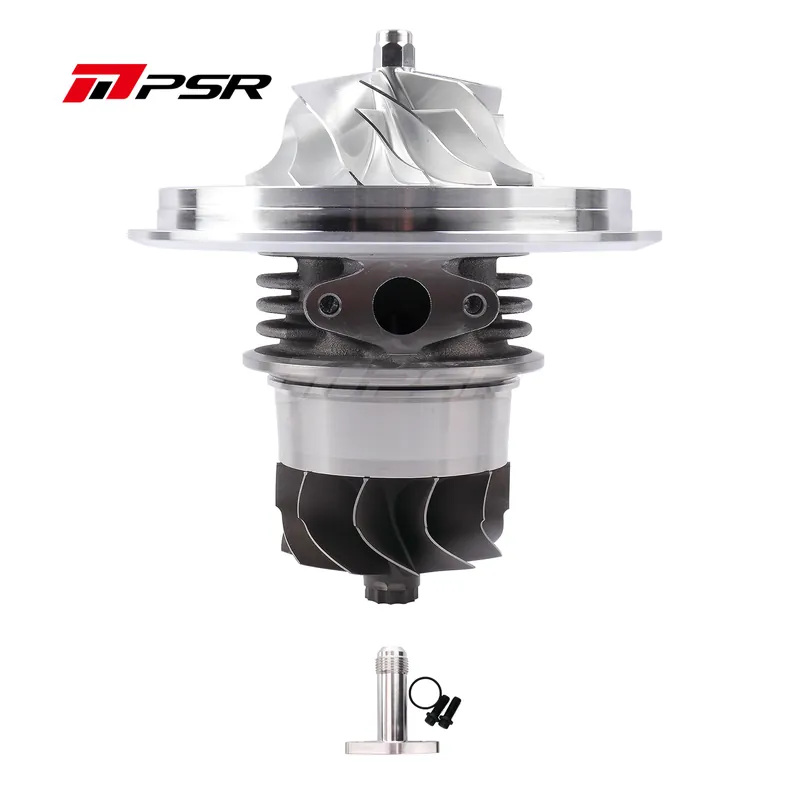

7685E Ball Bearing Turbo UP to 1500HP
- Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 11 Blade Turbine Wheel
- T4 divided and V-Band In/out are available in turbine housing option
- Vband Flange kit for the exhaust housing included
- Max Engine Horsepower: 1500
Compressor Cover: W/O Compressor Housing
Turbine Housing: W/O Turbine Housing
- Billet Compressor Wheel: 76x 102.4mm, 7+7 Blade
- Turbine Wheel: 85 x 89.5mm, 11 Blade
- Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
- Compressor Cover: 5.0 Hose Inlet/3 V-Band Outlet
- Turbine Housing: T4 Divided 1.28A/R(4 V-band Outlet); Dual V-Band 1.15A/R(3 V-band Inlet, 4 V-band Outlet); Dual V-Band 1.28A/R(3 V-band Inlet, 4 V-band Outlet)
- The internal oil feed port is 0.9mm(An oil restrictor is not needed)
- Oil feed fitting: 1/8-27 NPSF
- Oil Drain: -12AN
Important! Only fit for PSR compressor cover!
