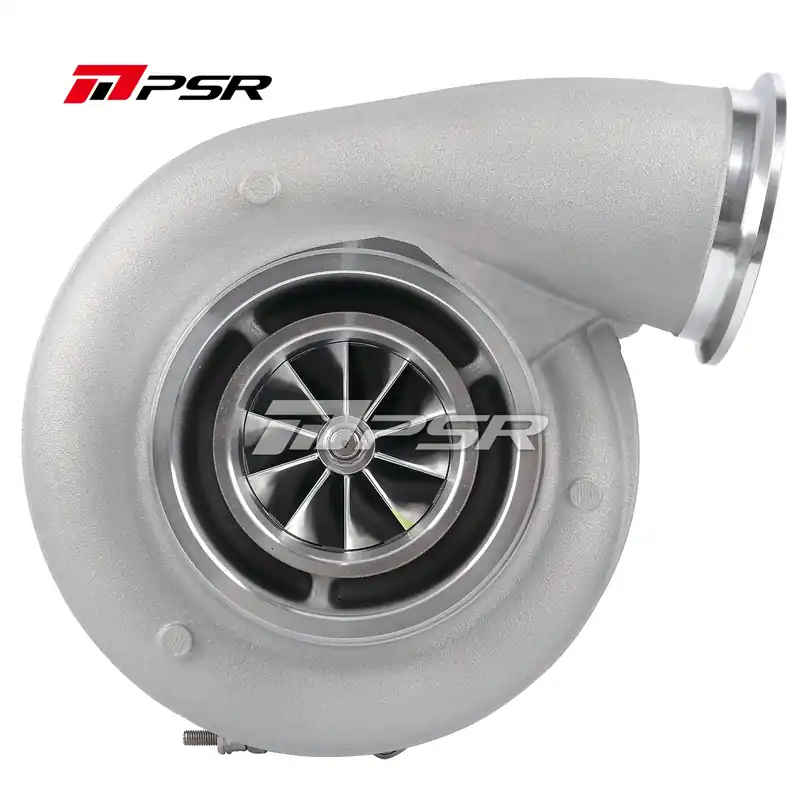

PSR 472 Journal Bearing Billet Compressor Wheel Turbocharger
- Billet compressor wheel with extended tip technology for the ultimate in aerodynamics
- Inconel 713 turbine wheel for high-temperature operation
- T4 Divided turbine housing in 0.9A/R, 1.0A/R, 1.10A/R or 1.25 A/R with 4 Vband Outlet
Compressor Housing: Standard
Turbine Housing: W/O Turbine Housing
Turbine Wheel: 87.4/81.7mm
Features:
- Compressor Wheel: 71.93×101.5 7+7
- Billet Compressor Wheels with Extended Tip Technology
- 83/74mm, 87.4/81.7mm in Turbine Wheel Options
- STD Compressor Cover without Speed Sensor Port
- -12AN Oil Drain Flange
Details:
- Compressor Inlet: 5 Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 0.9, 1.0, 1.10, 1.25 in Option
- Turbine Housing Inlet: T4 Divided
- Turbine Housing Outlet: V-band (Flat)
* V-band Flange Kits are available:
- TRB. Outlet 4 Flange & Clamp Kit (164340001)
- TRB. Outlet 5 Flange & Clamp Kit (164340002)
- COMP. Outlet 3 Flange & Clamp Kit (164340003)
- COMP. Outlet 3.5 Flange & Clamp Kit (164340004)
- COMP. Outlet 4 Flange & Clamp Kit (164340005)
