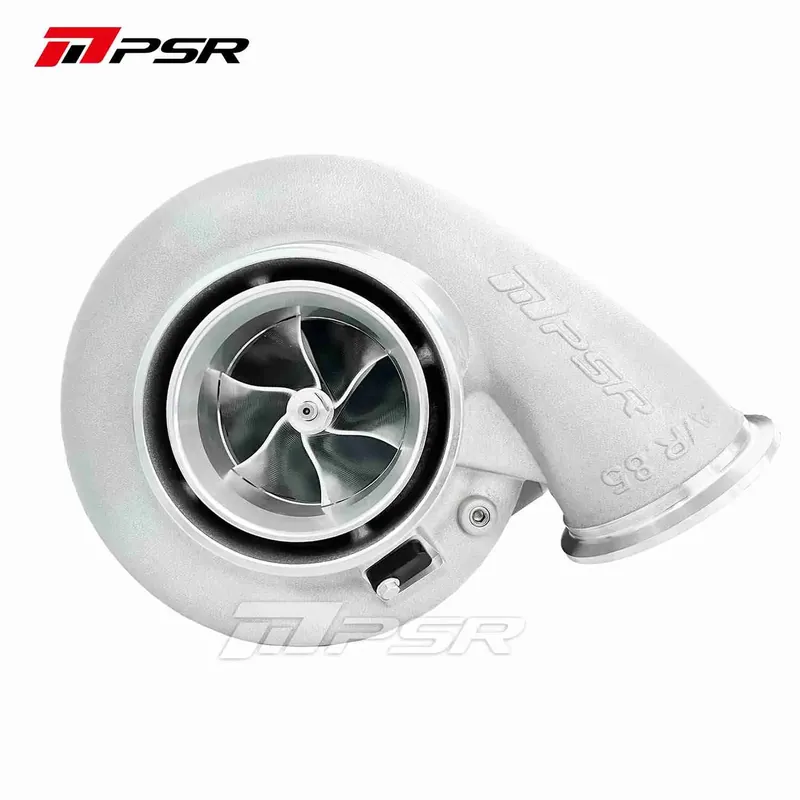

PSR 8582G Curved Point Mill Compressor Wheel Dual Ball Bearing Turbocharger
- 6+6 Blade, New design Curved point mill billet compressor wheel which can obtain the most mass flow through the curved vanes and allow increases in engine horsepower output
- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
- Water fittings included with the super core
- 9 Options in Turbine Housing
- Installation Hardware: 3 flange kit for Comp. Outlet, T4 Gasket/3 flange kit for Turb. Inlet, 3.5/4 flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
- Oil Feed Fitting(-4AN 1.65mm (0.065) Orifice) included
Compressor Housing: W/O Compressor Housing
Turbine Housing: W/O Turbine Housing
- Curved Point Mill Compressor Wheel: 85.15* 115*119.67mm
- Turbine Wheel: 89*81.6mm
- Compressor Inlet: 5 Hose
- Compressor Outlet: 3 V-Band
- Turbine Inlet: 3 V-Band/T4 open/ T4 divided
- Water Ports: -6AN
- Oil Feed Fitting(-4AN 1.65mm (0.065) Orifice) included
- Oil Drain: -12AN(O-Ring sealed Flange Kit Included)
