Opis

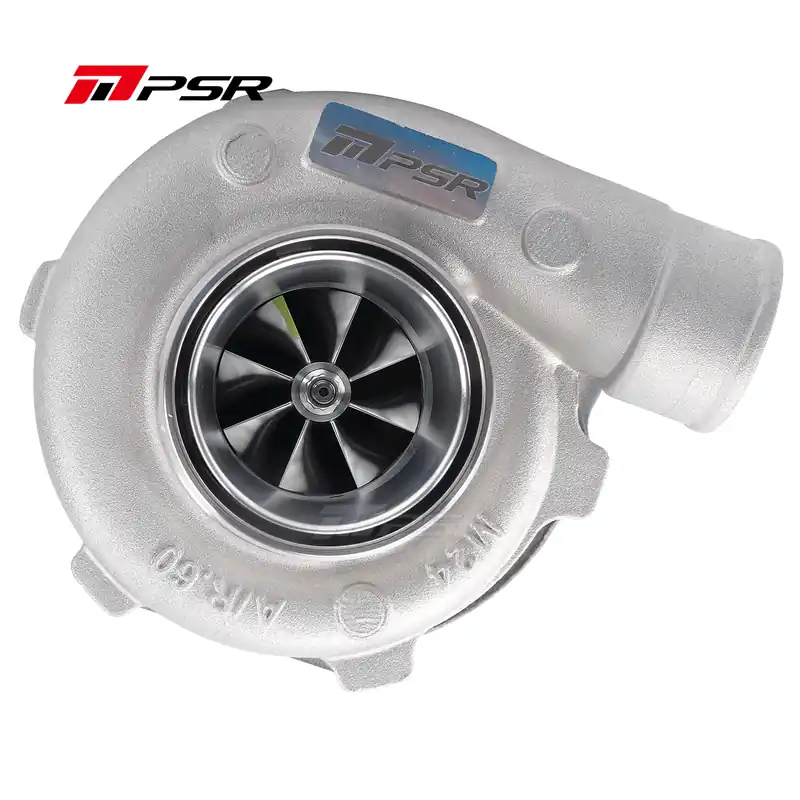

PSR3071 Gen2 Compact Dual Ball Bearing Turbocharger
- Compact compressor cover, 3 inlet, 2 outlet
- Dual Ceramic Ball Bearing System
- 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel
- Multiple options for turbine housing
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP
Compressor Housing: Standard
Turbine Housing: Dual V-Band 0.72A/R with IWG
Actuator: Billet 15psi PSR Logoed
- Compressor Wheel: 54*71mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 3 Hose
- Compressor Outlet: 2 Hose
- Turbine Inlet: T3, T4, or 2.5 V-Band
- Turbine Outlet: 3 V-Band (3.55 OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
