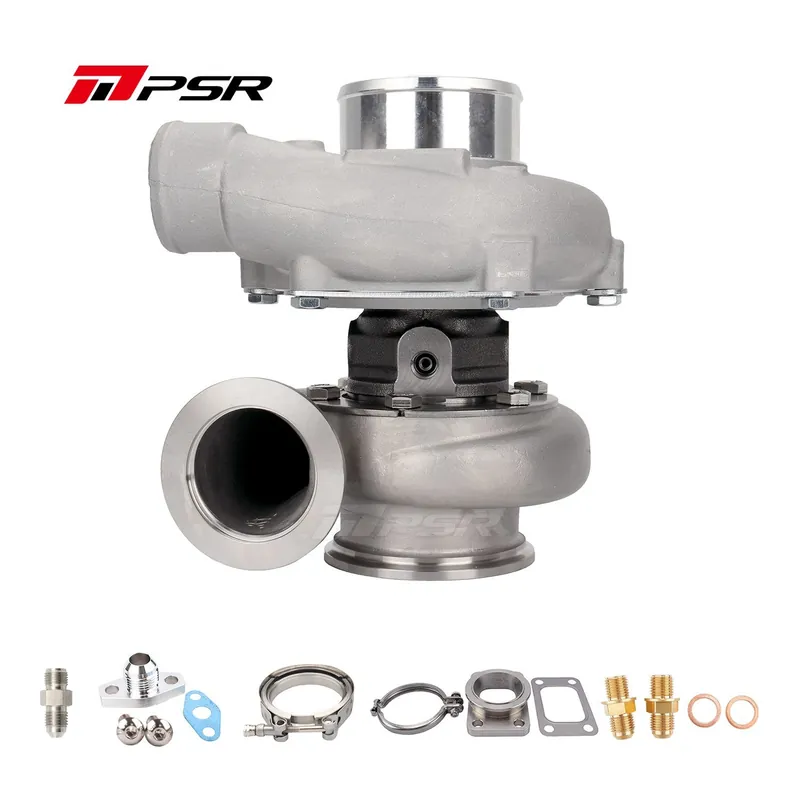

PSR3582 Compact Dual Ball Bearing Turbocharger
- Compact compressor cover
- Dual Ceramic Ball Bearing System
- 7+7 Blade Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 9 Blade Turbine Wheel
- Multiple options for turbine housing
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: 70 lb/min, rated @ 750 FWHP
Turbine Housing: Stainless Steel V-Band Inlet V-Band Outlet 1.03A/R + T25 Adapter
- Compressor Wheel: 62.5*82.4mm
- Turbine Wheel: 68*62mm
- Compressor Inlet: 3.0 Hose
- Compressor Outlet: 2.0 Hose
- Turbine Inlet: T3, T4, or 2.5 V-Band
- Turbine Outlet: 3 V-Band (3.55OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
