Opis

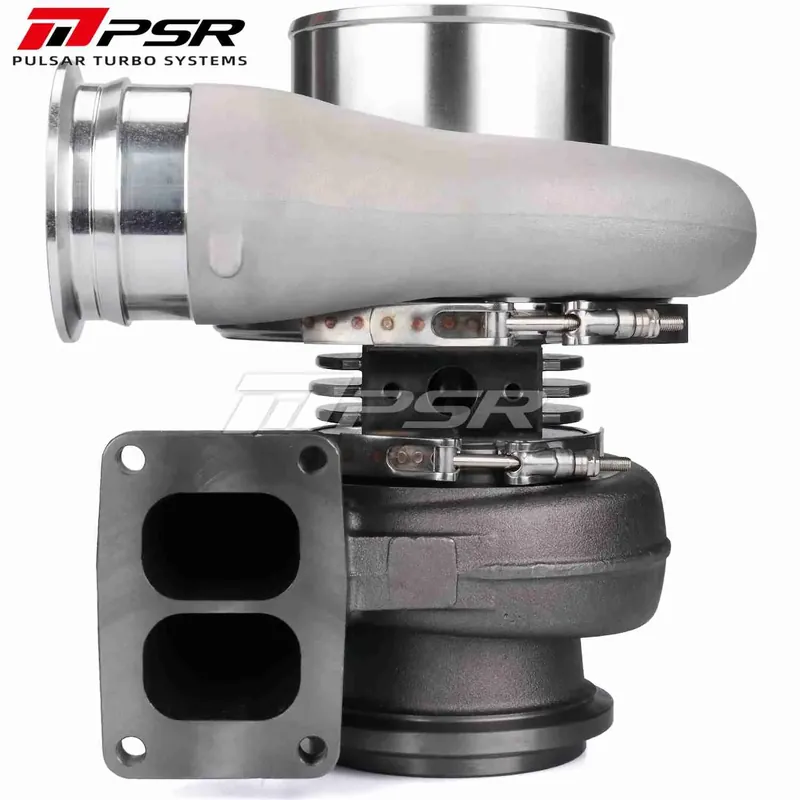

PSR 485D DUAL BALL BEARING TURBO CURVED POINT MILLED BILLET COMPRESSOR WHEEL
- CNC Machined Bearing Housing with The FIN COOLING DESIGN
- Dual Ceramic Ball Bearing Systems
- 85mm Curved Point Milled Compressor Wheel
- Billet Compressor Wheels with Extended Tip Technology
- 102/91mm 10+0 Blade and 109/99mm 10+0 Blade Turbine Wheel
- STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
- Hot engine shut down is strictly prohibited
- Review: 480D 1115hp on 57psi, Fuel: M1 Alcohol
Compressor Housing: Standard
Turbine Housing: T6 Divided 1.15 A/R
Turbine Wheel: 102/91mm
Recommending Engine Displacement: 3.0-8.0L
HP Rating 750-1350
Features:
- CNC Machined Bearing Housing with The FIN COOLING DESIGN
- Dual Ceramic Ball Bearing Systems
- 85*120mm 6+6 Blade Curved Point Milled Compressor Wheel
- Billet Compressor Wheels with Extended Tip Technology
- 102/91mm and 109/99mm Turbine Wheel Options
- STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
- Review: 480D 1115hp on 57psi, Fuel: M1 Alcohol
Details:
- Compressor Inlet: 5.5 Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 1.15, 1.32, 1.45, and 1.58 in Option
- Turbine Housing Inlet: T6 Open and T6 Divided in Option
- Turbine Housing Outlet: 3/4 Marmon V-band
- Oil Feed Port 1/4NPT
- Oil Drain Std T6 drain Flange
* V-band Flange Kits are available:
- TRB. Outlet 4 Flange & Clamp Kit (164340001)
- TRB. Outlet 5 Flange & Clamp Kit (164340002)
- COMP. Outlet 3 Flange & Clamp Kit (164340003)
- COMP. Outlet 3.5 Flange & Clamp Kit (164340004)
- COMP. Outlet 4 Flange & Clamp Kit (164340005)
